10AX680MEFC8x10.8
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C THT E-Cap AX-series for high ripple currents
Product Code:
258684
Weight: 1 g
Manufacturer: RUBYCON
Weight: 1 g
Manufacturer: RUBYCON
Detailed information

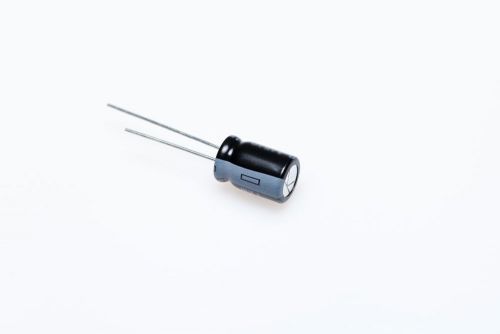

Miniaturized 105°C THT Aluminum Electrolytic Capacitor 10AX680MEFC8x10.8 with high ripple current capability in small dimensions
For general questions
Technical Product Information
| Rated Voltage | 10V |
|---|---|
| Capacitance | 680µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 1600mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0,042Ω |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 2000h |
| Pin Type | THT |
| Pitch | 3,5mm |
| Diameter | 8mm |
| Height | 10,8mm |
| Series | AX |
| Voltage Type | DC |
| Rated Voltage | 10Vdc |
