DC/DC Converters
Choosing the Right DC/DC Converter
DC/DC converters are used in a wide variety of industrial (IEC/EN-UL-CSA62368-1) and medical applications (IEC/EN-UL-CSA60601-1 4th Edition). In addition to these two main groups, special certifications must be covered, such as, for instance IEC/EN50155 (EN50121-32, EN61373) for railway technology, which comprises EMC (EMI), ESD, surge, transients, and vibration and shock resistance, or also the household appliance standard IEC/EN-UL-CSA60335-1. The noise radiation IEC/EN55032 (CISPR22), Class A for industrial applications and Class B for end consumer devices in the commercial sector, is achieved by 5/6 – times shielded and earthed modules.
The key components of the DC/DC module must be ready for action 24/7, must resist thermal stresses, must carry safety approvals, and, above all, must be reliable. And for that reason, many manufacturers have now adopted the principle of a 10 year guarantee.
Samples Contacts NewsGalvanically Isolated DC/DC Converter
In addition to the standard footprints such as SIP 4,6,7,8, DIP14, 26, 24 and SMT(SMD) in the low-power range, industrial standards 1“x1“ and 1“x2“ are also steadily gaining in significance. The brick formats (Full, Half, ¼, 1/8, 1/16, 1/32) continue to be used in the Telecom sector.
The ever increasing power density has led to new cooling concepts: Apart from traditional cooling elements, which are now integrated into the housing itself, the dissipation of heat via the SMT pins/pads is also provided for, in particular in the POL area (LGA), or via contact surfaces for thermal contacting at the device housing.
Apart from the more traditional interface modules, with purely functional or basic isolation, a galvanically isolated DC/DC converter is a constituent part of the safety chain. Thereby, with medical applications the creepage and clearance required for the different overvoltage categories are only partially reached by the power unit. The type of isolation – doubled, reinforced – also plays a part in this, in particular with medical applications (MOOP – Means of Operator Protection, MOPP – Means of Patient Protection), in particular with classifications in accordance with NC(B), BF (body floating), CF (cardiac floating) with which the patient leakage separates the wheat from the chaff. In addition to electrical safety (LVD, ELV, SELV), which is required for obtaining the CE marking, the electromagnetic compatibility (EMC, EMI) also has a decisive role to play.
Manufacturers & Contacts
AIMTEC
AIMTEC's product portfolio includes miniaturized AC/DC and DC/DC switching power converters and LED drivers. AIMTEC’s designs are intended to to help customers worldwide reduce development time and costs while facilitating miniaturization and performance enhancement of their applications. The products are designed for use in industrial and medical environments and feature a wide operating temperature range for very harsh ambience.
Infos Samples
COSEL
COSEL is Japan's market leader in the manufacture of high quality power supplies and DC-DC converters for medical and industrial applications. The company offers AC-DC and DC-DC converters as well as mains and DC filters of the highest quality and in a wide range of form factors. COSEL's product portfolio ranges from classic open card power supplies, DIN rail power supplies and on-board print modules to modular plug-in solutions. The DC/DC converters also include all common designs in PTH as well as SMT in brick and industrial designs.
Infos Samples
MPS
Monolithic Power Systems, Inc. (MPS) is amongst the globally leading suppliers in the power-management area. The broad portfolio contains eg DC/DC-converters and -modules, PMICs, battery-management-ICs, current-sensors, AC/DC-converter-ICs, motordrivers as well as angle-sensors and, newly added, even inductors for the DC/DC-converters. Target markets are mainly industrial, automotive, telecom-infrastructure, cloud-computing and consumer-applications.
Find here an overview of MPS DC DC Converter.
Infos Samples
RECOM
RECOM offers a large variety of products with over 30.000 modules. The brand is famous for innovative and reliable designs, fast time-to-market and very open and close relationship to its customers.
Infos Samples
Subcategories of DC/DC Converters
-

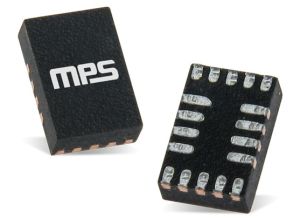

![MPS-MPM3822C]()
DC/DC IC Modules MPM3822CGRH-ZInput voltage: 2,7 - 6V
Input Voltage min: 2,75V
Input Voltage max: 6,0V
Output Current: 2000mA
Free Sample
-
![SilvertelAG7100]()
Free Sample
-
![mps_mezd712xx_isometric_2]()
POL Converters mEZD71201A-DInput Voltage min: 4,5V
Input Voltage max: 24V
Output Voltage: 1,8V
Output Current: 1000mA
Free Sample
-
![mEZD71201A-F]()
POL Converters mEZD71201A-FInput Voltage min: 4,5V
Input Voltage max: 24V
Output Voltage: 3,3V
Output Current: 1000mA
Free Sample
-
![mEZD71201A-G]()
POL Converters mEZD71201A-GInput Voltage min: 6,5V
Input Voltage max: 24V
Output Voltage: 5V
Output Current: 1000mA
Free Sample
-
![mEZD71202A-D]()
POL Converters mEZD71202A-DInput Voltage min: 4,5V
Input Voltage max: 24V
Output Voltage: 1,8V
Output Current: 2000mA
Free Sample
-
![mEZD71202A-E]()
POL Converters mEZD71202A-EInput Voltage min: 4,5V
Input Voltage max: 24V
Output Voltage: 2,5V
Output Current: 2000mA
Free Sample
-
![mEZD71202A-F]()
POL Converters mEZD71202A-FInput Voltage min: 4,5V
Input Voltage max: 24V
Output Voltage: 3,3V
Output Current: 2000mA
Free Sample
-
![mEZD71202A-G]()
POL Converters mEZD71202A-GInput Voltage min: 6,5V
Input Voltage max: 24V
Output Voltage: 5V
Output Current: 2000mA
Free Sample
-
![mEZD71203A-C]()
POL Converters mEZD71203A-CInput Voltage min: 5V
Input Voltage max: 16V
Output Voltage: 1,5V
Output Current: 3000mA
Free Sample
-
![mEZD71203A-F]()
POL Converters mEZD71203A-FInput Voltage min: 5V
Input Voltage max: 16V
Output Voltage: 3,3V
Output Current: 3000mA
Free Sample
-
![mps_mezd724xx_isometric_2]()
POL Converters mEZD72401A-FInput Voltage min: 4,5V
Input Voltage max: 36V
Output Voltage: 3,3V
Output Current: 1000mA
Free Sample
