Current Sensors
To Measure the Current Flowing Through
Today, current sensors are used in many devices to measure the current flowing through. There are different methods to measure it. One would be Hall based technology where the magnetic field created by the current flow is measured via the Hall effect. This kind of modules often also contain an iron core to focus the magnetic field.
Samples Contacts News
CODICO's product range features sensors for current measurement in the range between 0 to +/- 170A. Most of our sensors are available in a very compact design. Current sensors are used in engine control, inverters, power factor correction (PFC), and in several security applications.
Manufacturers & Contacts
AKM
AKM offers customers optimised solutions using a wide range of semiconductor sensors and has been working with CODICO since 1999. AKM uses analogue/digital mixed-signal processes as technology. In particular, the audio ICs, which combine high sound quality with low power consumption, as well as magnetic sensors and gas sensors have made AKM a major player in the European IC market.
Infos Samples
ISABELLENHÜTTE
As one of the leading providers worldwide ISABELLENHUETTE produces first-class precision and power resistors in the field of low resistance load for various applications.
Infos SamplesMPS
Monolithic Power Systems, Inc. (MPS) is amongst the globally leading suppliers in the power-management area. The broad portfolio contains eg DC/DC-converters and -modules, PMICs, battery-management-ICs, current-sensors, AC/DC-converter-ICs, motordrivers as well as angle-sensors and, newly added, even inductors for the DC/DC-converters. Target markets are mainly industrial, automotive, telecom-infrastructure, cloud-computing and consumer-applications.
Find here an overview of MPS DC DC Converter.
Infos SamplesYAGEO-KEMET

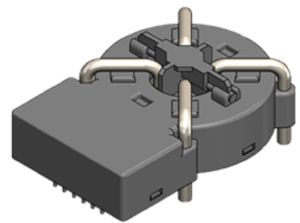

YAGEO-KEMET is one of the leading manufacturers of tantalum, polymer and film capacitors, but also offers special leakage current sensors for industry and automotive charging technology. The product portfolio additionally covers ceramic, aluminum electrolytic and double layer capacitors as well as inductors. The main focus of CODICO is on the film capacitors and leakage current sensors.
Infos Samples-

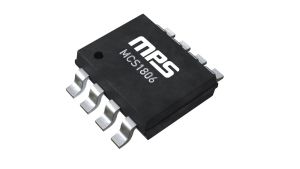

Current Sensors MCS1806GS-5-40 (5 pcs. Sample-Box)Current Range: ±40A
VCC: 5V
Isolation: 3kV
Housing: SOIC-8
Free Sample
-

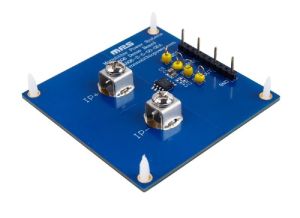

Current Sensors EVCS1806-S-5-20-00ACurrent Range: ±20A
VCC: 5V
Isolation: 3kV
Internal Conductor Resistance: 0,9mΩ
Free Sample
-
Current Sensors MCS1806GS-5-20 (5 pcs. Sample-Box)Current Range: ±20A
VCC: 5V
Isolation: 3kV
Housing: SOIC-8
Free Sample
-
Current Sensors MCS1806GS-3-10 (5 pcs. Sample-Box)Current Range: ±10A
VCC: 3,3V
Isolation: 3kV
Housing: SOIC-8
Free Sample
-
Current Sensors MCS1806GS-5-10 (5pcs. Sample-Box)Current Range: ±10A
VCC: 5V
Isolation: 3kV
Housing: SOIC-8
Free Sample
-
Current Sensors Eval-Board: +/- 5A, 2,2kV, 3,3V SupplyCurrent Range: ±5A
VCC: 3,3V
Isolation: 2,2kV
Internal Conductor Resistance: 0,9mΩ
Free Sample
-
Current Sensors EVCS1806-S-5-10-00ACurrent Range: ±10A
VCC: 5V
Isolation: 3kV
Internal Conductor Resistance: 0,9mΩ
Free Sample
-
Current Sensors EVCS1806-S-5-50-00ACurrent Range: ±50A
VCC: 5V
Isolation: 3kV
Internal Conductor Resistance: 0,9mΩ
Free Sample
