10FVC1800M+P
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability

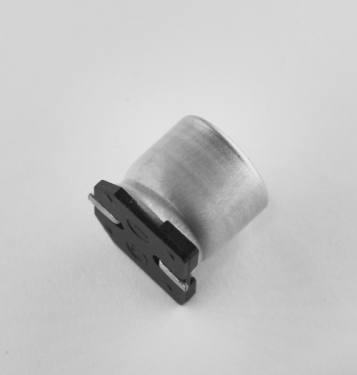

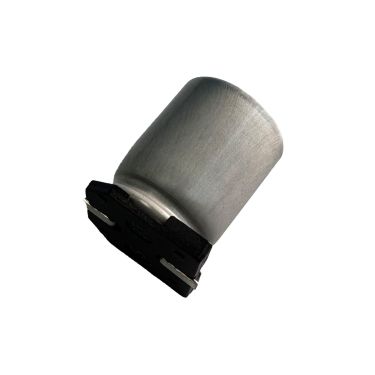

Ultra miniaturized 135°C SMD Hybrid E-Cap FVC-series
Product Code:
323623
Weight: 1.9 g
Manufacturer: SUNCON
Weight: 1.9 g
Manufacturer: SUNCON
Detailed information
Ultra miniaturized 135°C SMD Aluminum-Polymer-Hybrid Electrolytic Capacitor 10FVC1800M+P with 4.000h guaranteed life time, low ESR and high ripple current capability.
Rated ripple current at 125°C: 4,400mA rms
Rated ripple current at 105°C: 7,000mA rms
Rated ripple current at 125°C: 4,400mA rms
Rated ripple current at 105°C: 7,000mA rms
For general questions
Technical Product Information
| Capacitance | 1800µF |
|---|---|
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 2100mA rms |
| Impedance/ESR | 0,014Ω |
| Maximum Category Temperature | 135°C |
| Minimale Category Temperature | -55°C |
| Guaranteed Lifetime | 4000h |
| Pin Type | SMD |
| Diameter | 10mm |
| Height | 12,5mm |
| Series | FVC |
| Voltage Type | DC |
| Rated Voltage | 10Vdc |
