16TRV330M8x10.5
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C SMD Long-Life E-Cap TRV-series for high ripple currents
Product Code:
258484
Weight: 0.87 g
Manufacturer: RUBYCON
Weight: 0.87 g
Manufacturer: RUBYCON
Detailed information

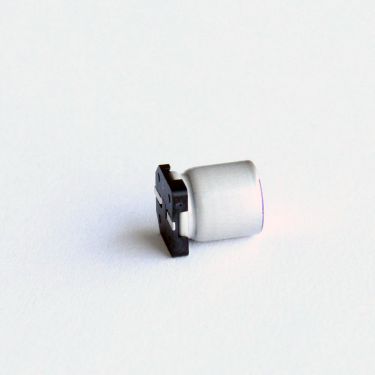

105°C SMD Aluminum Electrolytic Capacitor 16TRV330M8x10.5 with high ripple current capability and extra long life time
For general questions
Technical Product Information
| Rated Voltage | 16V |
|---|---|
| Capacitance | 330µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 600mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0,15Ω |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 8000h |
| Pin Type | SMD |
| Diameter | 8mm |
| Height | 10,5mm |
| Series | TRV |
| Voltage Type | DC |
| Rated Voltage | 16Vdc |
