250LEX6R8MEFC8x11.5
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
125°C THT Long-Life E-Cap LEX-series with compact dimensions
Product Code:
259063
Weight: 1.1 g
Manufacturer: RUBYCON
Weight: 1.1 g
Manufacturer: RUBYCON
Detailed information

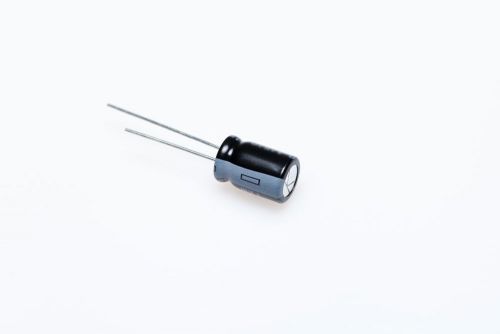

125°C THT DC-Link Aluminum Electrolytic Capacitor 250LEX6R8MEFC8x11.5 with long life time and small dimensions
For general questions
Technical Product Information
| Rated Voltage | 250V |
|---|---|
| Capacitance | 6,8µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 129mA rms |
| Rated Ripple Current @120Hz | 68mA rms |
| Maximum Category Temperature | 125°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 5000h |
| Pin Type | THT |
| Pitch | 3,5mm |
| Diameter | 8mm |
| Height | 11,5mm |
| Series | LEX |
| Voltage Type | DC |
| Rated Voltage | 250Vdc |
