25HVPY470M+P
Free Sample
Availability
Immediately deliverable
More information about samples availability can be found here: Availability
125°C SMD Hybrid E-Cap HVPY-series
Product Code:
287644
Weight: 1.9 g
Manufacturer: SUNCON
Weight: 1.9 g
Manufacturer: SUNCON
Detailed information

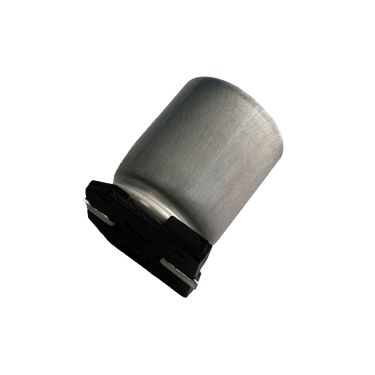

125°C SMD Aluminum-Polymer-Hybrid Electrolytic Capacitor 25HVPY470M+P with 4.000h guaranteed life time, particular low ESR and particular high ripple current capability
For general questions
Technical Product Information
| Capacitance | 470µF |
|---|---|
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 4700mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0,014Ω |
| Maximum Category Temperature | 125°C |
| Minimale Category Temperature | -55°C |
| Guaranteed Lifetime | 4000h |
| Pin Type | SMD |
| Diameter | 10mm |
| Height | 12,5mm |
| Series | HVPY |
| Voltage Type | DC |
| Rated Voltage | 25Vdc |
