25MXG39000MEFCSN35x45
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C Snap-in E-Cap MXG-series
Product Code:
260572
Weight: 66 g
Manufacturer: RUBYCON
Weight: 66 g
Manufacturer: RUBYCON
Detailed information

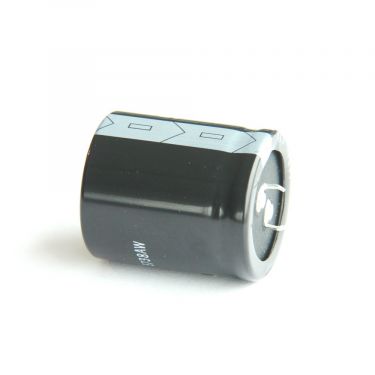

105°C Snap-in Aluminum Electrolytic Capacitor 25MXG39000MEFCSN35x45 with 2.000h guaranteed life time
For general questions
Technical Product Information
| Rated Voltage | 25V |
|---|---|
| Capacitance | 39000µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 0mA rms |
| Rated Ripple Current @120Hz | 5800mA rms |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 3000h |
| Pin Type | SNAP-IN |
| Pitch | 10mm |
| Diameter | 35mm |
| Height | 45mm |
| Series | MXG |
| Voltage Type | DC |
| Rated Voltage | 25Vdc |
