25PZF330M10x9
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
125°C THT Hybrid E-Cap PZF-series
Product Code:
256292
Weight: 1.3 g
Manufacturer: RUBYCON
Weight: 1.3 g
Manufacturer: RUBYCON
Detailed information

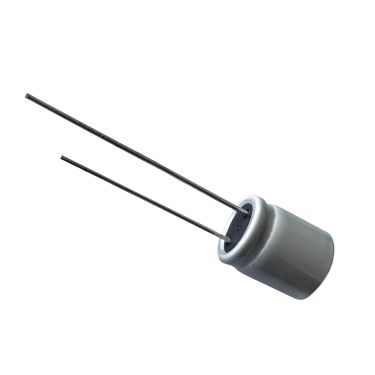

125°C THT Aluminum-Polymer-Hybrid Electrolytic Capacitor 25PZF330M10x9 with 4.000h guaranteed life time, low ESR and high ripple current capability
For general questions
Technical Product Information
| Capacitance | 330µF |
|---|---|
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 2000mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0,02Ω |
| Maximum Category Temperature | 125°C |
| Minimale Category Temperature | -55°C |
| Guaranteed Lifetime | 4000h |
| Pin Type | THT |
| Pitch | 5mm |
| Diameter | 10mm |
| Height | 9mm |
| Series | PZF |
| Voltage Type | DC |
| Rated Voltage | 25Vdc |
