35FVF150M+P
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
150°C SMD Hybrid E-Cap FVF-series
Product Code:
297021
Weight: 0.9 g
Manufacturer: SUNCON
Weight: 0.9 g
Manufacturer: SUNCON
Detailed information

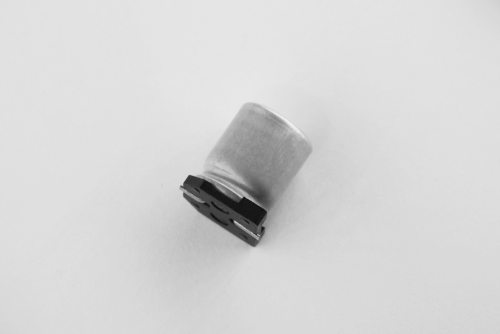

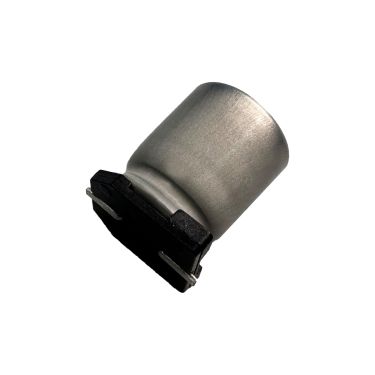

150°C SMD Aluminum-Polymer-Hybrid Electrolytic Capacitor 35FVF150M+P with 4.000h guaranteed life time, very low ESR and particularly high ripple current capability.
For general questions
Technical Product Information
| Capacitance | 150µF |
|---|---|
| Capacitance Tolerance | +/-20 % |
| Max. Rated Ripple Curr.@100kHz | 4000mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0.020Ω |
| Maximum Category Temperature | 150°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 4000h |
| Pin Type | SMD |
| Diameter | 8mm |
| Height | 10.5mm |
| Series | FVF |
| Voltage Type | DC |
| Rated Voltage | 35Vdc |
