35RX302200M16x35.5
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
130°C THT E-Cap RX30-series
Product Code:
162865
Weight: 11 g
Manufacturer: RUBYCON
Weight: 11 g
Manufacturer: RUBYCON
Detailed information

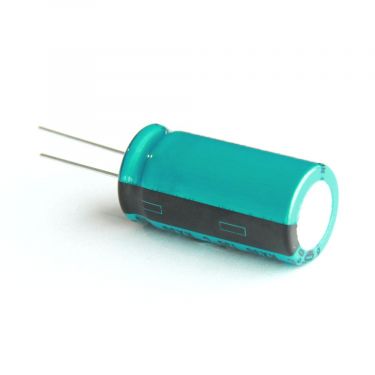

130°C THT Aluminum Electrolytic Capacitor 35RX302200M16x35.5
For general questions
Technical Product Information
| Rated Voltage | 35V |
|---|---|
| Capacitance | 2200µF |
| Capacitance Tolerance | +/-20 % |
| Max. Rated Ripple Curr.@100kHz | 2550mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0.031Ω |
| Maximum Category Temperature | 130°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 4000h |
| Pin Type | THT |
| Pitch | 7.5mm |
| Diameter | 16mm |
| Height | 35.5mm |
| Series | RX30 |
| Voltage Type | DC |
| Rated Voltage | 35Vdc |
