35THV33M6.3x8
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
125°C SMD Long-Life E-Cap THV-series
Product Code:
258422
Weight: 0.41 g
Manufacturer: RUBYCON
Weight: 0.41 g
Manufacturer: RUBYCON
Detailed information

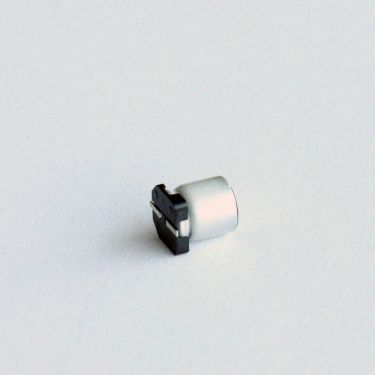

125°C SMD Aluminum Electrolytic Capacitor 35THV33M6.3x8 with long life time
For general questions
Technical Product Information
| Rated Voltage | 35V |
|---|---|
| Capacitance | 33µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 200mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0,7Ω |
| Maximum Category Temperature | 125°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 2000h |
| Pin Type | SMD |
| Diameter | 6,3mm |
| Height | 8mm |
| Series | THV |
| Voltage Type | DC |
| Rated Voltage | 35Vdc |
