35YXM100MEFR8x11.5
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability

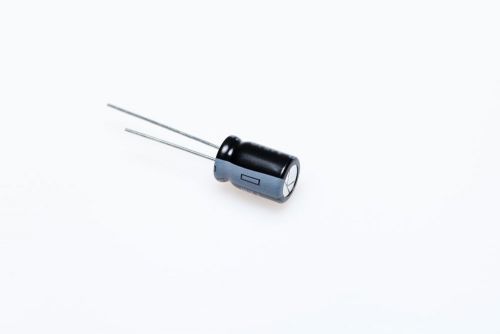

105°C THT Long-Life E-Cap YXM-series with small dimensions
Product Code:
259575
Weight: 1.1 g
Manufacturer: RUBYCON
Weight: 1.1 g
Manufacturer: RUBYCON
Detailed information
105°C THT Aluminum Electrolytic Capacitor 35YXM100MEFR8x11.5 with 10.000h guaranteed life time at small dimensions
For general questions
Technical Product Information
| Rated Voltage | 35V |
|---|---|
| Capacitance | 100µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 330mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 10000h |
| Pin Type | THT |
| Pitch | 3,5mm |
| Diameter | 8mm |
| Height | 11,5mm |
| Series | YXM |
| Voltage Type | DC |
| Rated Voltage | 35Vdc |
