400LEX6R8MEFC10x16
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
125°C THT Long-Life E-Cap LEX-series with compact dimensions
Product Code:
259071
Weight: 2.1 g
Manufacturer: RUBYCON
Weight: 2.1 g
Manufacturer: RUBYCON
Detailed information

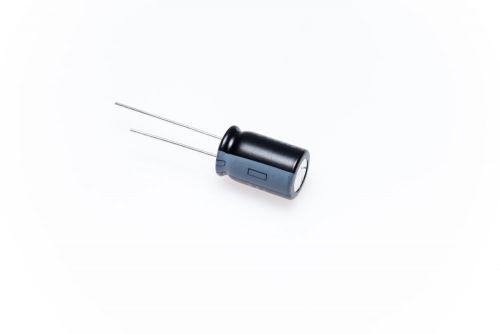

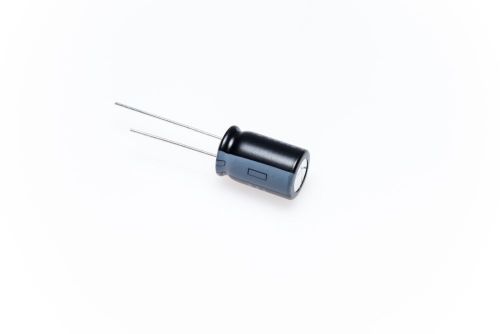

125°C THT DC-Link Aluminum Electrolytic Capacitor 400LEX6R8MEFC10x16 with long life time and small dimensions
For general questions
Technical Product Information
| Rated Voltage | 400V |
|---|---|
| Capacitance | 6,8µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 161mA rms |
| Rated Ripple Current @120Hz | 85mA rms |
| Maximum Category Temperature | 125°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 5000h |
| Pin Type | THT |
| Pitch | 5mm |
| Diameter | 10mm |
| Height | 16mm |
| Series | LEX |
| Voltage Type | DC |
| Rated Voltage | 400Vdc |
