420QXW120MEFR14.5x45
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C THT DC-Link E-Cap QXW-series
Product Code:
259228
Weight: 9.6 g
Manufacturer: RUBYCON
Weight: 9.6 g
Manufacturer: RUBYCON
Detailed information

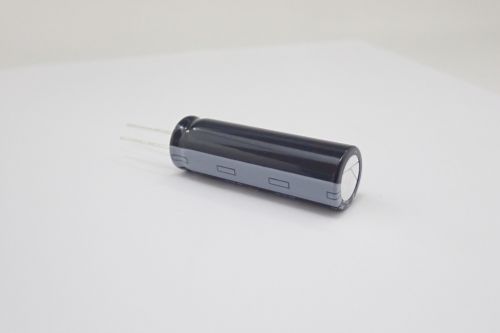

Miniaturized 105°C THT DC-Link Aluminum Electrolytic Capacitor 420QXW120MEFR14.5x45 with 2.000h guaranteed life time
For general questions
Technical Product Information
| Rated Voltage | 420V |
|---|---|
| Capacitance | 120µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 0mA rms |
| Rated Ripple Current @120Hz | 810mA rms |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 2000h |
| Pin Type | THT |
| Pitch | 7,5mm |
| Diameter | 14,5mm |
| Height | 45mm |
| Series | QXW |
| Voltage Type | DC |
| Rated Voltage | 420Vdc |
