420USK390MEFCSN22x50
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Ultra miniaturized 85°C Snap-in E-Cap USK-series
Product Code:
260832
Weight: 30 g
Manufacturer: RUBYCON
Weight: 30 g
Manufacturer: RUBYCON
Detailed information

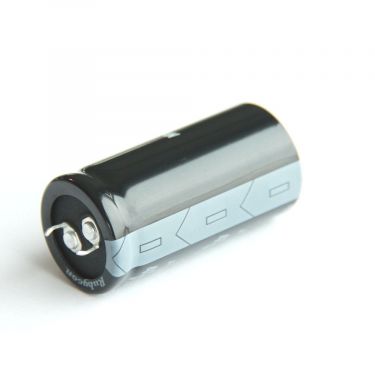

Ultra Miniaturized 85°C Snap-in Aluminum Electrolytic Capacitor 420USK390MEFCSN22x50 with 3.000h guaranteed life time
For general questions
Technical Product Information
| Rated Voltage | 420V |
|---|---|
| Capacitance | 390µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 0mA rms |
| Rated Ripple Current @120Hz | 2670mA rms |
| Maximum Category Temperature | 85°C |
| Minimale Category Temperature | -25°C |
| Guaranteed Lifetime | 3000h |
| Pin Type | SNAP-IN |
| Pitch | 10mm |
| Diameter | 22mm |
| Height | 50mm |
| Series | USK |
| Voltage Type | DC |
| Rated Voltage | 420Vdc |
