450LLE22MEFC12.5x25
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C THT Ultra-Long-Life E-Cap LLE-series with compact dimensions
Product Code:
259105
Weight: 4.8 g
Manufacturer: RUBYCON
Weight: 4.8 g
Manufacturer: RUBYCON
Detailed information

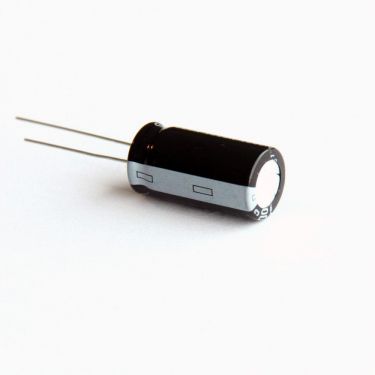

105°C THT DC-Link Aluminum Electrolytic Capacitor 450LLE22MEFC12.5x25 with extremely long life time and small dimensions
For general questions
Technical Product Information
| Rated Voltage | 450V |
|---|---|
| Capacitance | 22µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 600mA rms |
| Rated Ripple Current @120Hz | 240mA rms |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -25°C |
| Guaranteed Lifetime | 20000h |
| Pin Type | THT |
| Pitch | 5mm |
| Diameter | 12,5mm |
| Height | 25mm |
| Series | LLE |
| Voltage Type | DC |
| Rated Voltage | 450Vdc |
