50ML120MEFC10x9
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C THT Long-Life E-Cap ML-series with low profile case size
Product Code:
259149
Weight: 1.3 g
Manufacturer: RUBYCON
Weight: 1.3 g
Manufacturer: RUBYCON
Detailed information

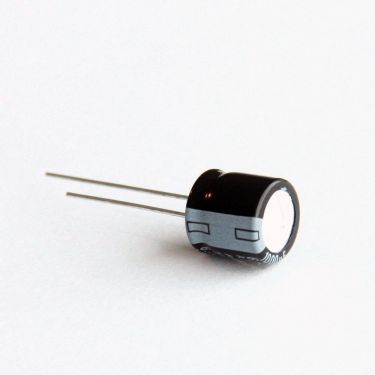

105°C THT Aluminum Electrolytic Capacitor 50ML120MEFC10x9 with long life time in small dimensions and low height
For general questions
Technical Product Information
| Rated Voltage | 50V |
|---|---|
| Capacitance | 120µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 0mA rms |
| Rated Ripple Current @120Hz | 315mA rms |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 5000h |
| Pin Type | THT |
| Pitch | 5mm |
| Diameter | 10mm |
| Height | 9mm |
| Series | ML |
| Voltage Type | DC |
| Rated Voltage | 50Vdc |
