50TXW180MEFC6.3x40
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
"105° THT Long-Life E-Cap TXW-series for high ripple currents ""Pencil Type"""
Product Code:
259325
Weight: 1.8 g
Manufacturer: RUBYCON
Weight: 1.8 g
Manufacturer: RUBYCON
Detailed information

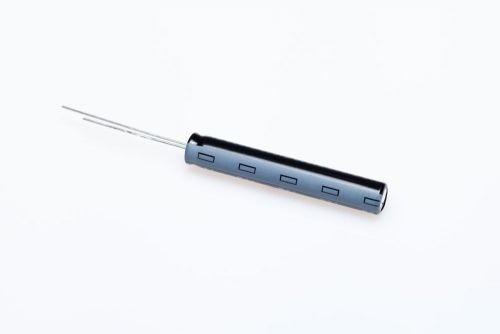

"105°C THT Aluminum Electrolytic Capacitor 50TXW180MEFC6.3x40 with high ripple current capability and long life time ""Pencil Type"""
For general questions
Technical Product Information
| Rated Voltage | 50V |
|---|---|
| Capacitance | 180µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 1420mA rms |
| Rated Ripple Current @120Hz | 710mA rms |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 7000h |
| Pin Type | THT |
| Pitch | 2,5mm |
| Diameter | 6,3mm |
| Height | 40mm |
| Series | TXW |
| Voltage Type | DC |
| Rated Voltage | 50Vdc |
