6.3TKV330M6.3x8
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C SMD E-Cap TKV-series for high ripple currents
Product Code:
258455
Weight: 0.41 g
Manufacturer: RUBYCON
Weight: 0.41 g
Manufacturer: RUBYCON
Detailed information

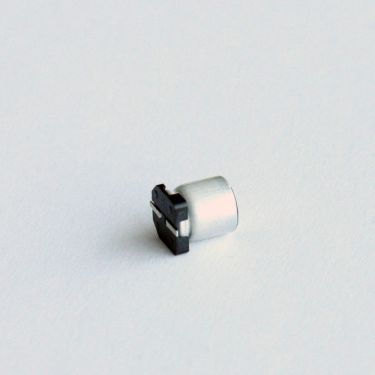

105°C SMD Aluminum Electrolytic Capacitor 6.3TKV330M6.3x8 with high ripple current capability
For general questions
Technical Product Information
| Rated Voltage | 6,3V |
|---|---|
| Capacitance | 330µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 600mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0,16Ω |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -55°C |
| Guaranteed Lifetime | 2000h |
| Pin Type | SMD |
| Diameter | 6,3mm |
| Height | 8mm |
| Series | TKV |
| Voltage Type | DC |
| Rated Voltage | 6,3Vdc |
