6.3ZLQ3900MEFC10x20
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Ultra miniaturized 105°C THT Low-ESR E-Cap ZLQ-series
Product Code:
259839
Weight: 2.7 g
Manufacturer: RUBYCON
Weight: 2.7 g
Manufacturer: RUBYCON
Detailed information

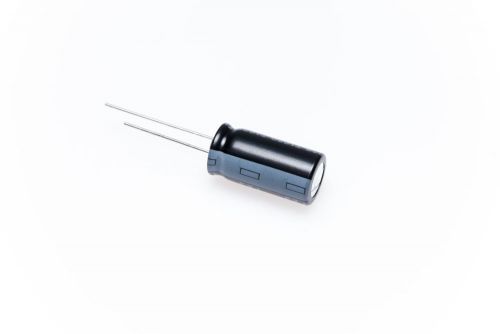

Ultra Miniaturized 105°C THT Aluminum Electrolytic Capacitor 6.3ZLQ3900MEFC10x20 with low ESR and high ripple current capability
For general questions
Technical Product Information
| Rated Voltage | 6,3V |
|---|---|
| Capacitance | 3900µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 2130mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0,018Ω |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 5000h |
| Pin Type | THT |
| Pitch | 5mm |
| Diameter | 10mm |
| Height | 20mm |
| Series | ZLQ |
| Voltage Type | DC |
| Rated Voltage | 6,3Vdc |
