63PEV56M10x10.5
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C SMD Hybrid E-Cap PEV-series
Product Code:
258385
Weight: 1.3 g
Manufacturer: RUBYCON
Weight: 1.3 g
Manufacturer: RUBYCON
Detailed information

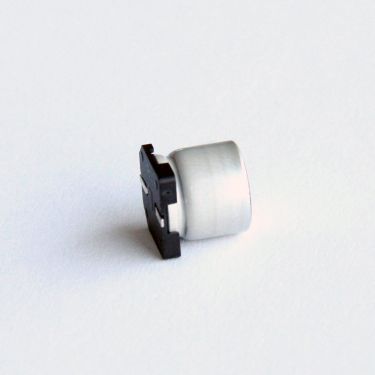

105°C SMD Aluminum-Polymer-Hybrid Electrolytic Capacitor 63PEV56M10x10.5 with 10.000h guaranteed life time, low ESR and high ripple current capability
For general questions
Technical Product Information
| Capacitance | 56µF |
|---|---|
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 1800mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0,03Ω |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -55°C |
| Guaranteed Lifetime | 10000h |
| Pin Type | SMD |
| Diameter | 10mm |
| Height | 10,5mm |
| Series | PEV |
| Voltage Type | DC |
| Rated Voltage | 63Vdc |
