63ZLJ82M8x11.5
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Miniaturized 105°C THT Low-ESR Long-Life E-Cap ZLJ-series for high ripple currents
Product Code:
235329
Weight: 1.1 g
Manufacturer: RUBYCON
Weight: 1.1 g
Manufacturer: RUBYCON
Detailed information

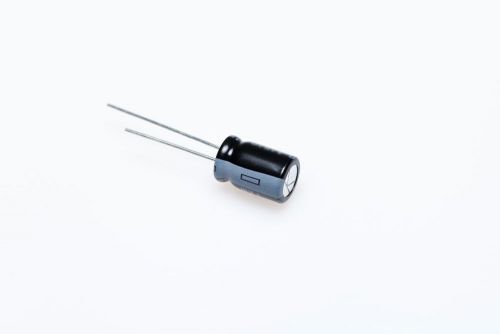

Miniaturized 105°C THT Aluminum Electrolytic Capacitor 63ZLJ82M8x11.5 with extra high ripple current capability, low ESR and long life time
For general questions
Technical Product Information
| Rated Voltage | 63V |
|---|---|
| Capacitance | 82µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 720mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0,18Ω |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 8000h |
| Pin Type | THT |
| Pitch | 3,5mm |
| Diameter | 8mm |
| Height | 11,5mm |
| Series | ZLJ |
| Voltage Type | DC |
| Rated Voltage | 63Vdc |
