80TXW470MEFC10x60
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
"105° THT Long-Life E-Cap TXW-series for high ripple currents ""Pencil Type"""
Product Code:
259314
Weight: 7.4 g
Manufacturer: RUBYCON
Weight: 7.4 g
Manufacturer: RUBYCON
Detailed information

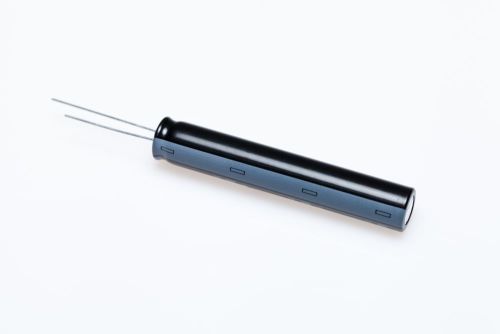

"105°C THT Aluminum Electrolytic Capacitor 80TXW470MEFC10x60 with high ripple current capability and long life time ""Pencil Type"""
For general questions
Technical Product Information
| Rated Voltage | 80V |
|---|---|
| Capacitance | 470µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 3590mA rms |
| Rated Ripple Current @120Hz | 1970mA rms |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 10000h |
| Pin Type | THT |
| Pitch | 5mm |
| Diameter | 10mm |
| Height | 60mm |
| Series | TXW |
| Voltage Type | DC |
| Rated Voltage | 80Vdc |
