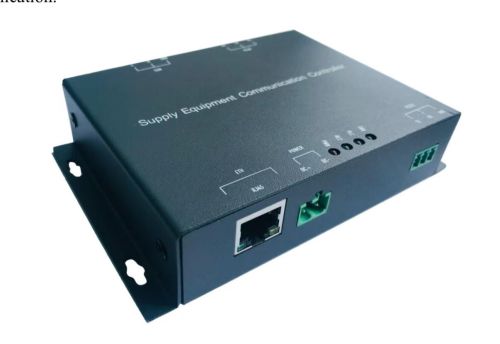

DB-SECC-601 DC EVSE Charging Comm.Controller for CCS1/2+NACS
€865.00
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
DB-SECC-601, is a SECC for DC-EVSE supporting CCS1, CCS2, and NACS. It complies to DIN 70121, ISO 15118-2 and ISO 15118-20 standards
Product Code:
327469
Weight: 200 g
Manufacturer: DROPBEATS
Weight: 200 g
Manufacturer: DROPBEATS
Detailed information
The DB-SECC-601 is a Supply Equipment Communication
Controller (SECC) and is designed for DC charge stations.
It supports CCS1, CCS2 and NACS according to DIN 70121, ISO 15118-2 and ISO 15118-20 standards. It supports authentication through External Identification Means (EIM), Plug and Charge (PnC) and Autocharge. The DB-SECC-601 uses QCA7005 for HPGP Power Line Communication. The control functions are implemented in Qualcomm's latest 32 bit, 320 MHz MCU with 4M Bytes RAM and 4M Bytes Flash
Controller (SECC) and is designed for DC charge stations.
It supports CCS1, CCS2 and NACS according to DIN 70121, ISO 15118-2 and ISO 15118-20 standards. It supports authentication through External Identification Means (EIM), Plug and Charge (PnC) and Autocharge. The DB-SECC-601 uses QCA7005 for HPGP Power Line Communication. The control functions are implemented in Qualcomm's latest 32 bit, 320 MHz MCU with 4M Bytes RAM and 4M Bytes Flash
