DST1610A 32,768kHz 12.5pF 90kOhm
Free Sample
Availability
Immediately deliverable
More information about samples availability can be found here: Availability

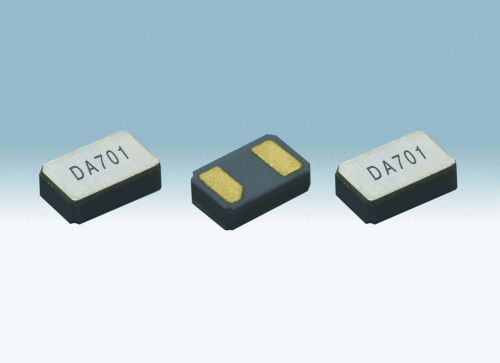

Tuning Fork 1610size 32,768kHz 12.5pF 90kOhm
Product Code:
247357
Weight: 2.5 g
Manufacturer: KDS Daishinku Corp
Weight: 2.5 g
Manufacturer: KDS Daishinku Corp
Detailed information
Tuning Fork DST1610A 32,768kHz
Frequency Tolerance(@25°C) : 20ppm
Operating Temperature Range : -40/85°C
Temperature Characteristic : -0,04ppm/°C
Load Capacitance : 12,5pF
ESR: 90k Ohm max
2pads
AEC-Q200 compliant
Frequency Tolerance(@25°C) : 20ppm
Operating Temperature Range : -40/85°C
Temperature Characteristic : -0,04ppm/°C
Load Capacitance : 12,5pF
ESR: 90k Ohm max
2pads
AEC-Q200 compliant
