DST210A 32,768kHz (for Automotive)
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Tuning Fork 2012size 32,768kHz
Product Code:
257469
Weight: 4.1 g
Manufacturer: KDS Daishinku Corp
Weight: 4.1 g
Manufacturer: KDS Daishinku Corp
Detailed information

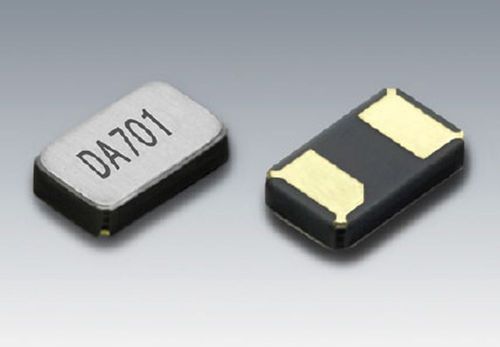

Tuning Fork DST210A 32,768kHz (for Automotive)
Frequency Tolerance(@25°C) : 20ppm
Operating Temperature Range : -40/125°C
Temperature Characteristic : -0,04ppm/°C
Load Capacitance : 12,5pF
2pads
AEC-Q200 compliant
Frequency Tolerance(@25°C) : 20ppm
Operating Temperature Range : -40/125°C
Temperature Characteristic : -0,04ppm/°C
Load Capacitance : 12,5pF
2pads
AEC-Q200 compliant
For general questions
Technical Product Information
| Case Size | 2012 |
|---|---|
| Capacitance | 12,5pF |
| Tolerance | 20ppm |
| Contactform | 2 pads |
| Dimension | 2.0×1.2×0.5mm |
| Packaging | Metal cover |
