EVCS1806-S-5-50-00A
Free Sample
Availability
Immediately deliverable
More information about samples availability can be found here: Availability

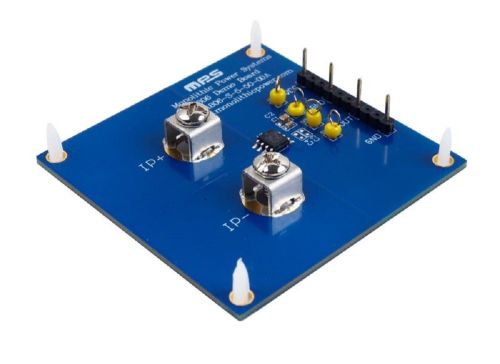

Eval-Board for a Hall-effect based current sensor
+/-50A
+/-50A
Product Code:
316154
Weight: 0 g
Manufacturer: MPS
Weight: 0 g
Manufacturer: MPS
Detailed information
Evaluation-Board
Current Sensorfor +/- 50A
5V Single Supply
Immune to External Magnetic Fields by Differential Sensing
3kVRMS Minimum Isolation Voltage
500VRMS Maximum Working Voltage
+/- 2,5% Accuracy
Operating Temperature: -40°C to +125°C
SOIC-8 Package
Current Sensorfor +/- 50A
5V Single Supply
Immune to External Magnetic Fields by Differential Sensing
3kVRMS Minimum Isolation Voltage
500VRMS Maximum Working Voltage
+/- 2,5% Accuracy
Operating Temperature: -40°C to +125°C
SOIC-8 Package
For general questions
Technical Product Information
| VCC | 5V |
|---|---|
| Internal Conductor Resistance | 0,9mΩ |
| Bandwidth | 100kHz |
| Isolation | 3kV |
| Current Range | ±50A |
| Accuracy | 2,5±% |
