MPL-AL4020-R82
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability

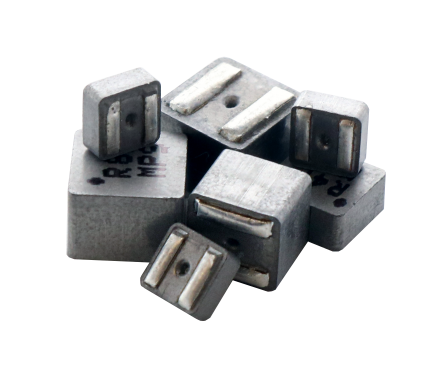

Power Inductor MPL-AL4020-R82
Product Code:
295972
Weight: 0.44 g
Manufacturer: MPS
Weight: 0.44 g
Manufacturer: MPS
Detailed information
Molded Inductor
Low-Resistance
Soft Saturation Characteristics
Magnetic Shielded
Available only in combination with MPS controller!
Low-Resistance
Soft Saturation Characteristics
Magnetic Shielded
Available only in combination with MPS controller!
For general questions
Technical Product Information
| Series | AL4020 |
|---|---|
| Inductance | 0.82μH |
| Tolerance | +/-20% |
| Rated Current | 8,4A |
| Saturation Current | 9.5(ΔL -30%) A |
| DC Resistance | 9.0mΩ |
| Dimension | 4.12x4.12mm |
| Height | 2.1mm |
| Pin Type | SMD |
| Minimale Category Temperature | -40°C |
| Maximum Category Temperature | 155°C |
