MPL-AL5030-1R5
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability

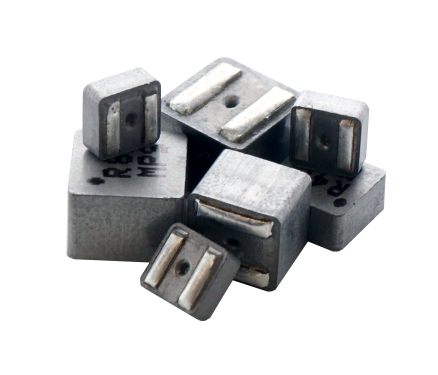

Power Inductor MPL-AL5030-1R5
Product Code:
295975
Weight: 0.45 g
Manufacturer: MPS
Weight: 0.45 g
Manufacturer: MPS
Detailed information
Molded Inductor
Low-Resistance
Soft Saturation Characteristics
Magnetic Shielded
Available only in combination with MPS controller!
Low-Resistance
Soft Saturation Characteristics
Magnetic Shielded
Available only in combination with MPS controller!
For general questions
Technical Product Information
| Series | AL5030 |
|---|---|
| Inductance | 1.5μH |
| Tolerance | +/-20% |
| Rated Current | 9A |
| Saturation Current | 12.5(ΔL -30%) A |
| DC Resistance | 9.7mΩ |
| Dimension | 5.52x5.32mm |
| Height | 2.92mm |
| Pin Type | SMD |
| Minimale Category Temperature | -40°C |
| Maximum Category Temperature | 155°C |
