MPL-AY1050-3R3
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Power Inductor MPL-AY1050-3R3
Product Code:
296016
Weight: 2.5 g
Manufacturer: MPS
Weight: 2.5 g
Manufacturer: MPS
Detailed information

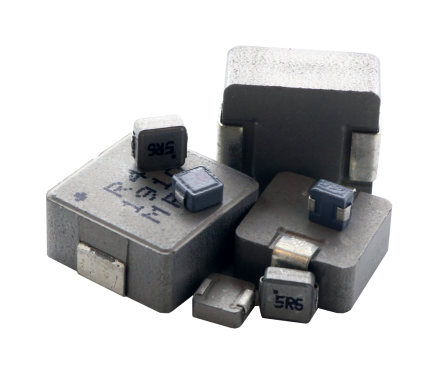

Molded Inductor
Soft Saturation Characteristics
Magnetic Shielded
Available only in combination with MPS controller!
Soft Saturation Characteristics
Magnetic Shielded
Available only in combination with MPS controller!
For general questions
Technical Product Information
| Series | AY1050 |
|---|---|
| Inductance | 3.3μH |
| Tolerance | +/-20% |
| Rated Current | 12.5A |
| Saturation Current | 17(ΔL -30%) A |
| DC Resistance | 8mΩ |
| Dimension | 11.5x10.3mm |
| Height | 4.82mm |
| Pin Type | SMD |
| Minimale Category Temperature | -40°C |
| Maximum Category Temperature | 155°C |
