MPL-SE2512-220
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability

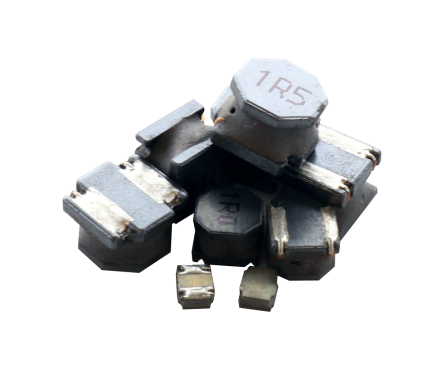

Power Inductor MPL-SE2512-220
Product Code:
296058
Weight: 0.027 g
Manufacturer: MPS
Weight: 0.027 g
Manufacturer: MPS
Detailed information
Semi-Shielded Inductors
SMD
Available only in combination with MPS controller!
SMD
Available only in combination with MPS controller!
For general questions
Technical Product Information
| Series | SE2512 |
|---|---|
| Inductance | 22μH |
| Tolerance | +/-20% |
| Rated Current | 0.70A |
| Saturation Current | 0.8(ΔL -30%) A |
| DC Resistance | 1000mΩ |
| Dimension | 2.52x2.2mm |
| Height | 1.2mm |
| Pin Type | SMD |
| Minimale Category Temperature | -40°C |
| Maximum Category Temperature | 125°C |
