MPL-SE4030-220
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Power Inductor MPL-SE4030-220
Product Code:
290138
Weight: 0.473 g
Manufacturer: MPS
Weight: 0.473 g
Manufacturer: MPS
Detailed information

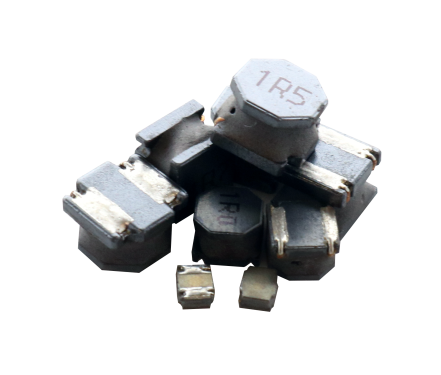

Semi-Shielded Inductors
SMD
Available only in combination with MPS controller!
SMD
Available only in combination with MPS controller!
For general questions
Technical Product Information
| Series | SE4030 |
|---|---|
| Inductance | 22μH |
| Tolerance | +/-20% |
| Rated Current | 1,5A |
| Saturation Current | 1.65(ΔL -30%) A |
| DC Resistance | 219mΩ |
| Dimension | 4.2x4.2mm |
| Height | 3mm |
| Pin Type | SMD |
| Minimale Category Temperature | -40°C |
| Maximum Category Temperature | 125°C |
