MPL-SE5040-220
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability

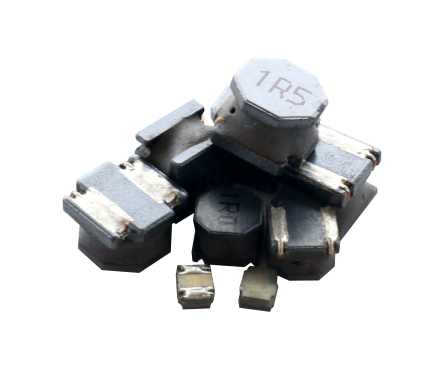

Power Inductor MPL-SE5040-220
Product Code:
290139
Weight: 0.46 g
Manufacturer: MPS
Weight: 0.46 g
Manufacturer: MPS
Detailed information
Semi-Shielded Inductors
SMD
Available only in combination with MPS controller!
SMD
Available only in combination with MPS controller!
For general questions
Technical Product Information
| Series | SE5040 |
|---|---|
| Inductance | 22μH |
| Tolerance | +/-20% |
| Saturation Current | 2.4(ΔL -30%) A |
| DC Resistance | 124mΩ |
| Dimension | 4.92x4.92mm |
| Height | 4mm |
| Pin Type | SMD |
| Minimale Category Temperature | -40°C |
| Maximum Category Temperature | 125°C |
