MPL-SE6040-2R2
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Power Inductor MPL-SE6040-2R2
Product Code:
296080
Weight: 0.6 g
Manufacturer: MPS
Weight: 0.6 g
Manufacturer: MPS
Detailed information

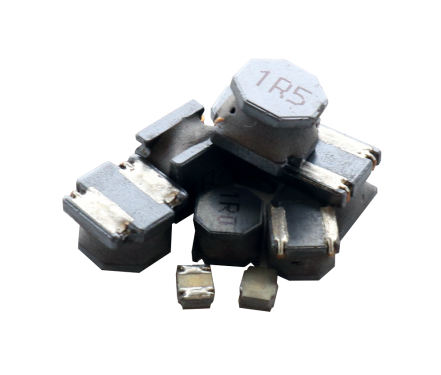

Semi-Shielded Inductors
SMD
Available only in combination with MPS controller!
SMD
Available only in combination with MPS controller!
For general questions
Technical Product Information
| Series | SE6040 |
|---|---|
| Inductance | 2.2μH |
| Tolerance | +/-20% |
| Rated Current | 6.3A |
| Saturation Current | 7.2(ΔL -30%) A |
| DC Resistance | 14.5mΩ |
| Dimension | 6.2x6.2mm |
| Height | 4mm |
| Pin Type | SMD |
| Minimale Category Temperature | -40°C |
| Maximum Category Temperature | 125°C |
