MQA4531-50-1U
€28.90
Availability
Deliverable in short time
More information about samples availability can be found here: Availability

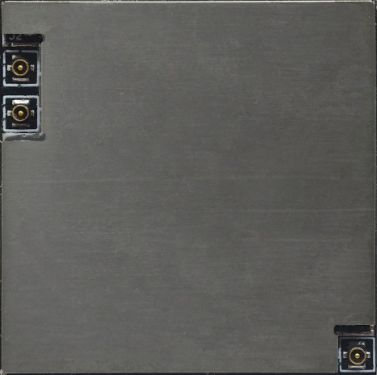

WiFi 4 + Bluetooth 5.4 SOM (System on Module)
Product Code:
336631
Weight: 0 g
Manufacturer: METICOMM
Weight: 0 g
Manufacturer: METICOMM
Detailed information
Module Supplier: Meticomm
Chip Supplier: Qualcomm
Chip Part Number: QCA4531-BL3B + QCC711
CPU: MIPS 24K @ 650 MHz
Flash: 128 MB NAND SPI + 512 KB NOR
RAM: 128 MB DDR2 @ 300 MHz
OS: Linux OpenWRT
Ethernet: 5 x 100 Base-T
USB: USB2.0
PCIe: PCIe1.1
Serial Interfaces: 3 x UART
GPIOs: 7 x GPIOs
JTAG: yes
Miscellaneous: NA
Standards: WiFi 4 + Bluetooth 5.4
MIMO: 2x2
Frequency 2.4 GHz
Bandwidth : HT20/HT40
Antenna Data Rate: 300 Mbps
Antenna Options: 2 x K.FL2 (WiFi) + 1 x K.FL2 (BT)
Output Power: 18 dBm
No. of Clients: 64
Power Supply: 3.3V
Dimension (mm): 34.83 x 34.83
Chip Supplier: Qualcomm
Chip Part Number: QCA4531-BL3B + QCC711
CPU: MIPS 24K @ 650 MHz
Flash: 128 MB NAND SPI + 512 KB NOR
RAM: 128 MB DDR2 @ 300 MHz
OS: Linux OpenWRT
Ethernet: 5 x 100 Base-T
USB: USB2.0
PCIe: PCIe1.1
Serial Interfaces: 3 x UART
GPIOs: 7 x GPIOs
JTAG: yes
Miscellaneous: NA
Standards: WiFi 4 + Bluetooth 5.4
MIMO: 2x2
Frequency 2.4 GHz
Bandwidth : HT20/HT40
Antenna Data Rate: 300 Mbps
Antenna Options: 2 x K.FL2 (WiFi) + 1 x K.FL2 (BT)
Output Power: 18 dBm
No. of Clients: 64
Power Supply: 3.3V
Dimension (mm): 34.83 x 34.83
