MQC2072-1-16-2U
€25.00
Availability
Deliverable in short time
More information about samples availability can be found here: Availability

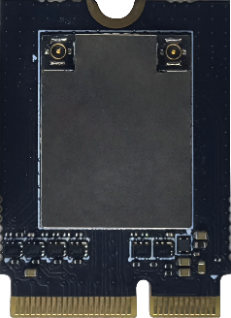

Wi-Fi 7 PCIe Radio-Module based on QCC-2072 from Qualcomm with UART/PCM interface for Bluetooth
Product Code:
337738
Weight: 0 g
Manufacturer: METICOMM
Weight: 0 g
Manufacturer: METICOMM
Detailed information
Module Supplier: Meticomm
Chip Supplier: Qualcomm
Chip Part Number: QCC-2072
Interface Wi-Fi: PCIe 3.0, M.2 E Key
Interface Bluetooth: UART/PCM
Linux & Android / Mainline Driver: yes / no
Windows: NA
Bluetooth Standard: V 6
WiFi Standard: WiFi 7
MIMO: Tri Band MLSR and eMLSR
Frequency: 2.4 GHz, 5 GHz, 6 GHz
Bandwidth: EHT320
Antenna Data Rate: 5.8Gbps
Antenna Configuration: [2G,5G,6G]+[2G,5G,6G,BT]
Antenna Type: 2 x MHF-4
Monitor Mode: yes
Full AP / Soft AP: no / yes
Power Supply: 3.3V, 1.8V (IO port)
Dimension (mm): 22 x 30
Package: M.2 Key E 2230
Temperature Range: -30°C to +85°C
Chip Supplier: Qualcomm
Chip Part Number: QCC-2072
Interface Wi-Fi: PCIe 3.0, M.2 E Key
Interface Bluetooth: UART/PCM
Linux & Android / Mainline Driver: yes / no
Windows: NA
Bluetooth Standard: V 6
WiFi Standard: WiFi 7
MIMO: Tri Band MLSR and eMLSR
Frequency: 2.4 GHz, 5 GHz, 6 GHz
Bandwidth: EHT320
Antenna Data Rate: 5.8Gbps
Antenna Configuration: [2G,5G,6G]+[2G,5G,6G,BT]
Antenna Type: 2 x MHF-4
Monitor Mode: yes
Full AP / Soft AP: no / yes
Power Supply: 3.3V, 1.8V (IO port)
Dimension (mm): 22 x 30
Package: M.2 Key E 2230
Temperature Range: -30°C to +85°C
