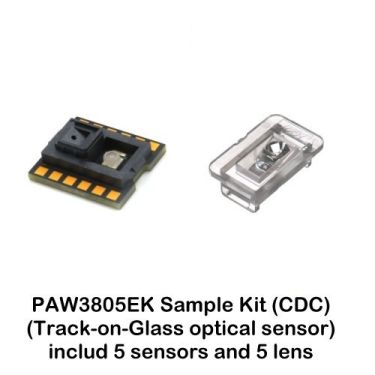

PAW3805EK-CJV2 Sample Kit (CDC)
€57.00
Availability
Immediately deliverable
More information about samples availability can be found here: Availability
TOG sensor
(Track-on-Glass optical sensor)
(Track-on-Glass optical sensor)
Product Code:
303876
Weight: 20 g
Manufacturer: PIXART
Weight: 20 g
Manufacturer: PIXART
Detailed information
PAW3805EK-CJV2
Track-on-Glass optical sensor
Superior detection capability to track on all types of flat surfaces, including transparent glass
Integrated package with optical chip, Blue LED light source, on-chip oscillator and built-in programmable LED current driver
Low power architecture (Run Current 2,5mA) and automatic power management features
High speed motion detection with adaptive frame rate control
Tracking Speed (ips): 40 on non-glass; 20 on glass
Acceleration (g): 10 on non-glass; 5 on glass
Resolution (cpi): 3000
Frame Rate (fps): Self-adjusting
Interface: 3-wire SPI
Integrated: Blue LED (470nm wavelength)
------------------------------------------
Kit includes:
5x (Sensor) PAW3805EK-CJV2
5x (Lens) L029-LSI
Track-on-Glass optical sensor
Superior detection capability to track on all types of flat surfaces, including transparent glass
Integrated package with optical chip, Blue LED light source, on-chip oscillator and built-in programmable LED current driver
Low power architecture (Run Current 2,5mA) and automatic power management features
High speed motion detection with adaptive frame rate control
Tracking Speed (ips): 40 on non-glass; 20 on glass
Acceleration (g): 10 on non-glass; 5 on glass
Resolution (cpi): 3000
Frame Rate (fps): Self-adjusting
Interface: 3-wire SPI
Integrated: Blue LED (470nm wavelength)
------------------------------------------
Kit includes:
5x (Sensor) PAW3805EK-CJV2
5x (Lens) L029-LSI
