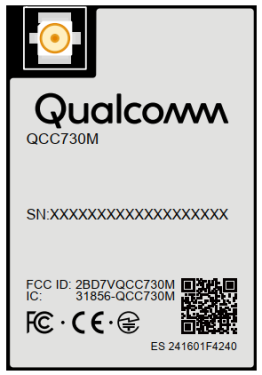

QCC-730M-1-LGM42C-MT-00-0-AE

Module Supplier: Qualcomm
Chip Supplier: Qualcomm
Chip Part Number: QCC-730-1
CPU: Cortex-M4F @ 60 MHz
Flash: 4 MB NOR
RAM: 640KB SRAM + 1.5 MB RRAM
ROM: NA
Hosted Interface: SPI or UART
Hosted OS: Any
Hostless OS: FreeRTOS
SDIO: NA
USB : NA
SPI / QSPI: 1 x SPI (slave) / 1 x QSPI (master)
UART: 4 x UART
I2C: 1 x I2C (master)
ADC: NA
DAC: NA
PWM: NA
GPIOs: 15 x multiplexed GPIOs
Securtiy: Crypto Accelerators
Secure Boot/Storage/Debug: yes/yes/yes
Miscellaneous: JTAG
Bluetooth Standard: NA
WiFi Standard: WiFi 4
MIMO: 1x1
Frequency: 2.4GHz & 5GHz
Bandwidth / MCS: HT20, MCS3
Antenna Data Rate: 28.9 Mbps
Antenna Type: RF connector
PA on Chip / Module: yes / yes
Soft AP: yes
Monitor Mode: yes
Power Supply: Main:1.8V to 3.6V IO:1.8V or 3.3V
Dimension (mm): 12.28 x 18.0
Package: 36-pin, LGA
Temperature Range: -20°C to 85°C
Mounting: single side
Carrier / QTY: Tape&Reel, Matrix Tray
Weight: 1.07 g
