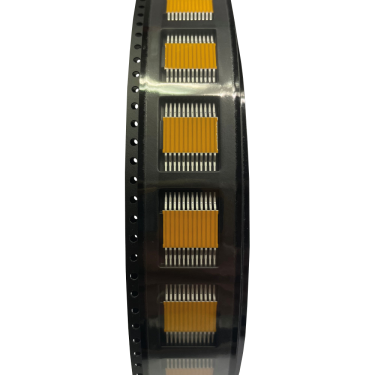

SMD-12-093-K-083-002
Free Sample
Availability
Immediately deliverable
More information about samples availability can be found here: Availability
Sumida PANTA© SMD
Pitch: 0.93mm
12 pins
Pitch: 0.93mm
12 pins
Product Code:
267058
Weight: 0 g
Manufacturer: SUMIDA
Weight: 0 g
Manufacturer: SUMIDA
Detailed information
Features:
-) Widespread use in automotive and industrial electronics and medical technology
-) Fulfills part accuracy and tolerance requirements for standard pick-and-place machines
-) Temperature resistance -40°C up to 125°C
-) Current rating 1-2A
-) Vibration resistance
-) Meets cleanliness requirements according to ISO 16232 and VDA 19.1
-) Processing following standard soldering profiles according to DIN EN 61760-1 / J-STD-020
-) Final assembly of the connected printed circuit boards of up to 180° possible
Technical data:
Pitch: 0.93mm
Number of pins: 12
Bridging length: 11.2mm
Total length: 15.2mm
Coplanarity: 150µm
Insulation material (foil): Polyimid
Conductor material: Cu 0,15mm
Surface: Sn/NiSn
Rated voltage: 60VDC
Current rating (at 20°C): 2A
Operating temperature: -40°C bis +125°C
Flammability: UL 94 V-0
