TobuFi system on module
€149.00
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
The TobuFi SOM specially built for long range mission critical communications applications using Wi-Fi for drones and robots
Product Code:
321493
Weight: 0 g
Manufacturer: 8DEVICES
Weight: 0 g
Manufacturer: 8DEVICES
Detailed information

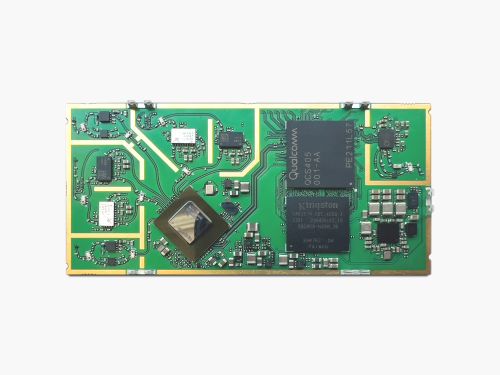

Highly integrated SOM for complete LOS / NLOS drone control over long range (up to 20km range)
Incorporates QCN-9074, highly integrated Wi-Fi 6, latest generation device.
External Frontend configuration to achieve long-range including Mesh capability and narrow channel support to facilitate greater range/special requirements
Dual-synthesizer WLAN radio up to 160MHz bandwidth support
Supports 5/10 MHz in 4.9 GHz (Public Safety band)
Supports 20/40 MHz in 2.4 GHz
Supports 20/40/80/160 MHz in 5 GHz
Supports 20/40/80/160 MHz in 6 GHz
Memory eMCP: LPDDR3 1GB + eMMC 8GB
LGA size 36.6 by 76.6 mm
Open-source software SDK and tools based on OpenEmbedded and Yocto Linux
Powerful development kit with rich set of external interfaces
Incorporates QCN-9074, highly integrated Wi-Fi 6, latest generation device.
External Frontend configuration to achieve long-range including Mesh capability and narrow channel support to facilitate greater range/special requirements
Dual-synthesizer WLAN radio up to 160MHz bandwidth support
Supports 5/10 MHz in 4.9 GHz (Public Safety band)
Supports 20/40 MHz in 2.4 GHz
Supports 20/40/80/160 MHz in 5 GHz
Supports 20/40/80/160 MHz in 6 GHz
Memory eMCP: LPDDR3 1GB + eMMC 8GB
LGA size 36.6 by 76.6 mm
Open-source software SDK and tools based on OpenEmbedded and Yocto Linux
Powerful development kit with rich set of external interfaces
