WPQ873
€307.10
Availability
Immediately deliverable
More information about samples availability can be found here: Availability

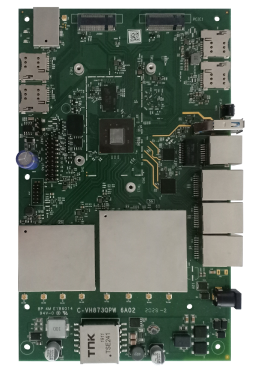

802.11ax Embedded Board based on
IPQ-8072A from Qualcomm
Advanced PCIe and Ethernet Interfaces
IPQ-8072A from Qualcomm
Advanced PCIe and Ethernet Interfaces
Product Code:
292843
Weight: 645 g
Manufacturer: COMPEX
Weight: 645 g
Manufacturer: COMPEX
Detailed information
Board Supplier: Compex
Chip Supplier: Qualcomm
Chip Part Number: IPQ-8072A-0
CPU: Quad Cortex-A53 @ 2GHz
Flash: 256 MB NAND & 8 MB NOR
RAM: 512 MB DDR4 @ 2.4GHz
OS: Linux OpenWRT
Ethernet: 3 x 1Gbps & 2.5Gbps
USB: USB3.0
PCIe: Mini PCIe 2.0 slot & M.2 + PCIe 3.0 for 5G cellular modem
Serial Interfaces: Serial Port 4 Pin Connector
GPIOs: up to 69
JTAG: 20 Pin Connector
Miscellaneous: no
Standards: WiFi 6 & BLE 5.0*
MIMO: 4x4 MU @ 2.4GHz & 4x4 MU @ 5GHz
Frequency: 2.4 GHz & 5 GHz
DBS: yes
Bandwidth: HT20/HT40/HT80/HT160(80+80)
Antenna Data Rate 2.4 GHz: 1182 Mbps
Antenna Data Rate 5 GHz: 2475 Mbps
Antenna Options: 8 x U.FL
Clients: 128
Output Power: 17 dBm per chain
Power Supply: 1 x DC Jack Connector: 12V
Dimension (mm): 128 x 255 x36.8
Weight (g): 645
Temperature Range: -20°C to +70°C
Reference Design: Qualcomm AP.HK09
