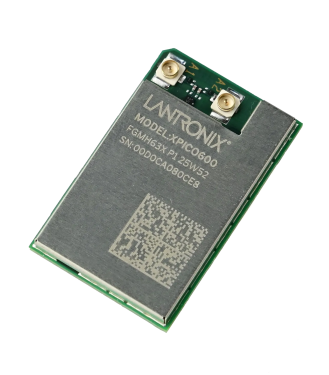

XPC600100P

Module Supplier : Lantronix
Chip Supplier: NXP
Chip Part Number: RW610
CPU: Cortex-M33 @ 260 MHz
Flash: 16 MB
RAM: 1.2 MB SRAM + 8 MB PSRAM
ROM: 256 KB
Hosted Interface: UART, USB, SPI, Ethernet
Hosted OS: Any
Hostless OS: FreeRTOS
SDIO: 1 x SDIO
USB: USB 2.0
SPI / QSPI: 1 x SPI (5 Mbps)
UART: 1 x UART (up to 4 Mbps)
I2C: 1 x I2C
ADC: NA
DAC: NA
PWM: NA
GPIOs: 12 x GPIOs
Securtiy: FOTA, WPA3 Enterprise, SSLv3/TLS1.3, AES
Secure Boot/Storage/Debug: yes/yes/no
Video: NA
Audio Codec with Audio DAC&ADC: NA
Miscellaneous: 10/100 Mbps Ethernet MAC, MDI
Bluetooth Standard: BLE 5.4
WiFi Standard: WiFi 6
MIMO: MU 1x1
Frequency: 2.4 GHz + 5 GHz
Bandwidth / MCS: HE20, MCS9
Antenna Data Rate: 114 Mbps
Antenna Type: 2 x U.FL (antenna diversity)
PA on Chip / Module: yes / no
Soft AP: Concurrent Soft AP and Client Mode
Monitor Mode: yes
Power Supply: 3.3 V
Dimension (mm): 18 x 28.5
Package: LGA, 71 pins
