7G23R-100M
Free Sample
Availability
Immediately deliverable
More information about samples availability can be found here: Availability

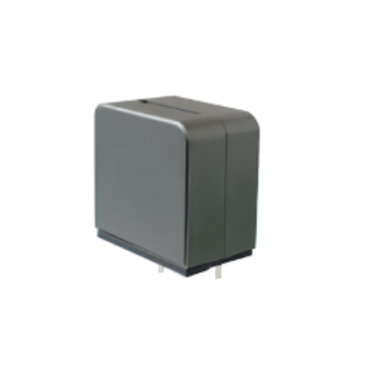

Sagami Power Choke for D-Class Amplifier 7G23R-100M
Product Code:
332667
Weight: 30.4 g
Manufacturer: SAGAMI
Weight: 30.4 g
Manufacturer: SAGAMI
Detailed information
Power Choke for D-Class Amplifier
Optimized Construction with Litz Wire
Inductance: 10µH
Saturation Current: 36.9A (ΔL -25%)
Rated Current: 5.5A
DC Resistance: 24mΩ
Rs at 100kHz: 23.8mΩ (typ)
Dimensions: 23x14.5mm, Height: 23mm
Magnetically shielded
THT, 3 Pins for better Vibration Resistance
Optimized Construction with Litz Wire
Inductance: 10µH
Saturation Current: 36.9A (ΔL -25%)
Rated Current: 5.5A
DC Resistance: 24mΩ
Rs at 100kHz: 23.8mΩ (typ)
Dimensions: 23x14.5mm, Height: 23mm
Magnetically shielded
THT, 3 Pins for better Vibration Resistance
For general questions
Technical Product Information
| Series | 7G23R |
|---|---|
| Inductance | 10μH |
| Tolerance | +/-20% |
| Rated Current | 5.5A |
| DC Resistance | 24mΩ |
| Dimension | 23x14.5mm |
| Height | 23mm |
| Pin Type | THT |
| Minimale Category Temperature | -40°C |
| Maximum Category Temperature | 125°C |
| Saturation Current | 36.9A |
