DB2605 AC EVSE Charging Raspberry Pi Kit

€264.00
Availability
Immediately deliverable
More information about samples availability can be found here: Availability

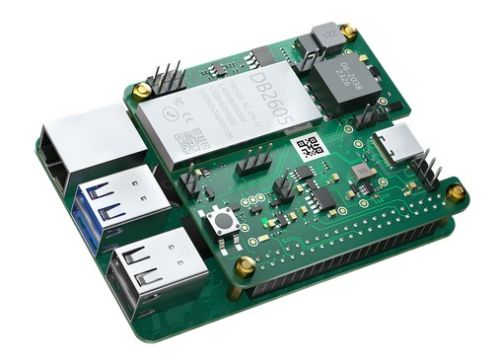

In addition to the DB2605 EV Charing HAT, the Raspberry Pi Kit also provides a Raspberry Pi 5/4B board.
Product Code: 326151
Weight: 200 g
Manufacturer: DROPBEATS

Detailed information

In addition to the DB2605 EV Charing HAT for Raspberry Pi , the Raspberry Pi Kit also provides a Raspberry Pi 5/4B board. This makes it convenient for users to set up and start using the evaluation kit right away without the need to source additional hardware. The Raspberry Pi 5/4B board included in the kit provides powerful computing capabilities, making it ideal for a variety of applications. With both the Raspberry Pi board and the HAT included, users have everything they need to start exploring and developing with the DB2605 EV Charging Commnication Controller.
Product Features:
The EV Charging Raspberry Pi Kit contains:

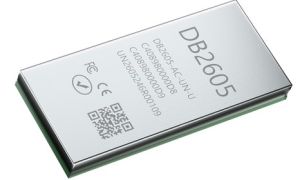

EV Charging HAT for Raspberry Pi with the DB2605 Communication Controller and a Raspberry Pi 5/4B board
Software:
QCA7005 PLC firmware
ISO 15118-2/20 software stack
CCU software behaves as the Charger's control MCU

For more information:

https://youtu.be/CQtliTJ41ZE
www.raspberrypi.com
