EEHZL1E151P
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability

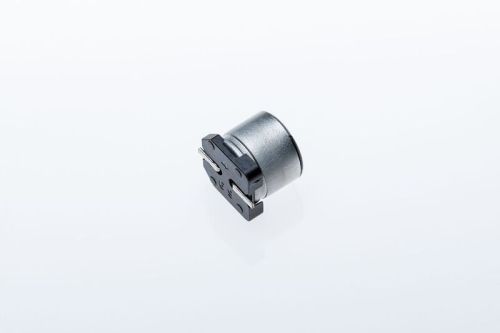

Ultra miniaturized 135°C SMD Hybrid E-Cap ZL-series
Product Code:
323794
Weight: 0.5 g
Manufacturer: PANASONIC
Weight: 0.5 g
Manufacturer: PANASONIC
Detailed information
Ultra miniaturized 135°C SMD Aluminum-Polymer-Hybrid Electrolytic Capacitor EEHZL1E151P with 4.000h guaranteed life time, particularly low ESR and particularly high ripple current capability - AEC-Q200 certified.
Ripple current capability at 125°C: 1,500mA rms
Ripple current capability at 125°C: 1,500mA rms
For general questions
Technical Product Information
| Capacitance | 150µF |
|---|---|
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 800mA rms |
| Impedance/ESR | 0,038Ω |
| Maximum Category Temperature | 135°C |
| Minimale Category Temperature | -55°C |
| Guaranteed Lifetime | 4000h |
| Pin Type | SMD |
| Diameter | 6,3mm |
| Height | 5,8mm |
| Series | ZL |
| Voltage Type | DC |
| Rated Voltage | 25Vdc |
