Ultra miniaturized 135°C SMD Hybrid E-Cap ZL-series

Product Code: 323802
Weight: 1.4 g
Manufacturer: PANASONIC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Description

Detailed information

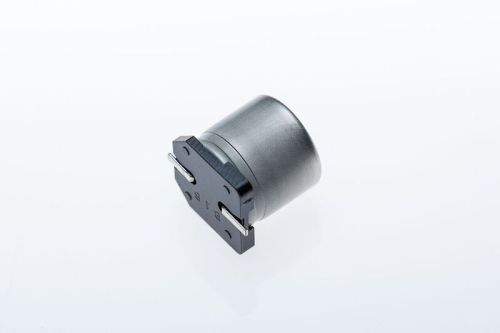

Ultra miniaturized 135°C SMD Aluminum-Polymer-Hybrid Electrolytic Capacitor EEHZL1V471P with 4.000h guaranteed life time, particularly low ESR and particularly high ripple current capability - AEC-Q200 certified.
Ripple current capability at 125°C: 3,300mA rms

For general questions

CODICO GmbH +43 1 86305-0 E-Mail

Technical Product Information

Datasheet_Panasonic_ZL (pdf , 870.4 KB )

Features

More Information
Capacitance	470µF
Capacitance Tolerance	+/-20 %
Rated Ripple Current @100kHz	2200mA rms
Impedance/ESR	0,016Ω
Maximum Category Temperature	135°C
Minimale Category Temperature	-55°C
Guaranteed Lifetime	4000h
Pin Type	SMD
Diameter	10mm
Height	10,2mm
Series	ZL
Voltage Type	DC
Rated Voltage	35Vdc
