EEHZT1E221P

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability
135°C SMD Hybrid E-Cap ZT-series
Product Code: 299163
Weight: 0.9 g
Manufacturer: PANASONIC

Detailed information

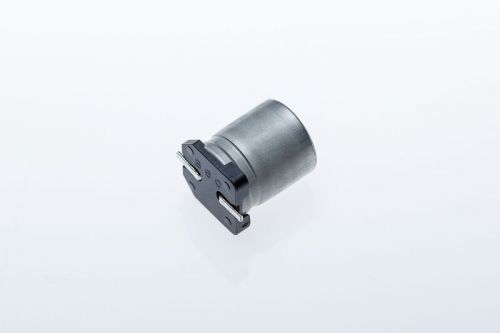

135°C SMD Aluminum-Polymer-Hybrid Electrolytic Capacitor EEHZT1E221P with 4.000h guaranteed life time, particular low ESR and particular high ripple current capability - AEC-Q200 certified.
Rated ripple current at 125°C: 2,900mA rms

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Capacitance 220µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 1800mA rms
Impedance/ESR 0,022Ω
Maximum Category Temperature +135°C
Minimale Category Temperature -55°C
Guaranteed Lifetime 4000h
Pin Type SMD
Diameter 8mm
Height 10,2mm
Series ZT
Voltage Type DC
Rated Voltage 25Vdc
