EEHZT1J330P
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability

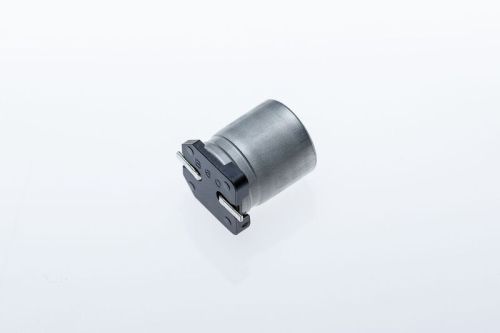

135°C SMD Hybrid E-Cap ZT-series
Product Code:
299169
Weight: 0.9 g
Manufacturer: PANASONIC
Weight: 0.9 g
Manufacturer: PANASONIC
Detailed information
135°C SMD Aluminum-Polymer-Hybrid Electrolytic Capacitor EEHZT1J330P with 4.000h guaranteed life time, particular low ESR and particular high ripple current capability - AEC-Q200 certified.
Rated ripple current at 125°C: 2.400mA rms
Rated ripple current at 125°C: 2.400mA rms
For general questions
Technical Product Information
| Capacitance | 33µF |
|---|---|
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 1500mA rms |
| Impedance/ESR | 0,032Ω |
| Maximum Category Temperature | +135°C |
| Minimale Category Temperature | -55°C |
| Guaranteed Lifetime | 4000h |
| Pin Type | SMD |
| Diameter | 8mm |
| Height | 10,2mm |
| Series | ZT |
| Voltage Type | DC |
| Rated Voltage | 63Vdc |
