ETQP5M220YFC

Free Sample

Availability

Deliverable in short time

More information about samples availability can be found here: Availability

Power Choke Coil ETQP5M220YFC

Product Code: 269221
Weight: 3.1 g
Manufacturer: PANASONIC

Skip to the end of the images gallery

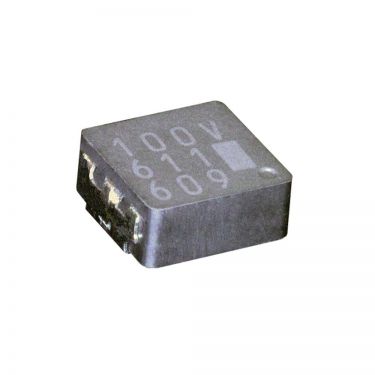

main product photo

Skip to the beginning of the images gallery

Product Description

Detailed information

Monolithic Structure
Soft Saturation Characteristics
Magnetic Shielded
AEC-Q200 certified

For general questions

CODICO GmbH +43 1 86305-0 E-Mail

Technical Product Information

Panasonic_PCC 1 (pdf , 186.8 KB )

More Information
Tolerance	+/-20%
Inductance	22μH
Saturation Current	8.8(ΔL -30%) A
DC Resistance	45mΩ
Series	PCC-M1054M
Pin Type	SMD
Minimale Category Temperature	-40°C
Maximum Category Temperature	150°C
Height	5,4mm
